Pentasodium Salt of Ethylene Diamine Tetra (Methylene Phosphonic Acid) (EDTMP•Na5)

CAS No.  7651-99-2

Molecular Formula: C6H15O12N2P4Na5         Molecular weight: 409

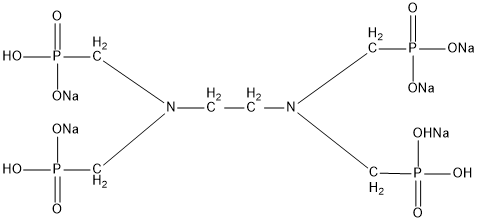

Structural Formula:

Pentasodium Salt of Ethylene Diamine Tetra (Methylene Phosphonic Acid) (EDTMP•Na5)

Properties:

EDTMP•Na5 is a neutral solid product. It is nitrogenous organic polyphosphonic acid, which is a part of cathodic corrosion inhibitor. EDTMP•Na5 can be fully dissolved in water, innocuous and none pollution to environment, has good chemical stability and thermal tolerance. EDTMP•Na5 has good scale inhibition property under temperature 200℃. EDTMP•Na5 can dissociate into 8 positive-negative ions, thus can chelate with more than two metal ions to form more than two polymer reticulation complex, the complex can be quickly dissolved in water to destroy the normal crystallization of calcium scale. EDTMP•Na5 shows better scale inhibition effects to calcium sulfate and barium sulfate.

 EDTMP•Na5 can be used as scale and corrosion inhibitor for circulating water and boiler water system, chelating agent in non-cyanide electroplating, water-softening agent in dyeing industry, etc.

The solid state EDTMP•Na5 is slightly easy to deliquescence, convenient in transportation and suitable for usage in winter and freezing districts.

Specification:

Items Index
Appearance Amber transparent liquid
Active content (as EDTMPA)% 24.0-26.0
Active content (as EDTMP•Na5)% 30.0-32.6
Chloride (Cl-) % 2.0 max
Density (20℃) g/cm3 1.25 min
Fe, mg/L 20.0 max
PH (as it) 6.0~8.0

Package and Storage:

For liquid: Normally In 250kg net Plastic Drum, IBC drum can also be used as required. Storage for ten months in room shady and dry place.

For solid: inner liner polyethylene (PE) bag, outer plastic woven bag, or confirmed by clients. Storage for one year in room shady and dry place.
